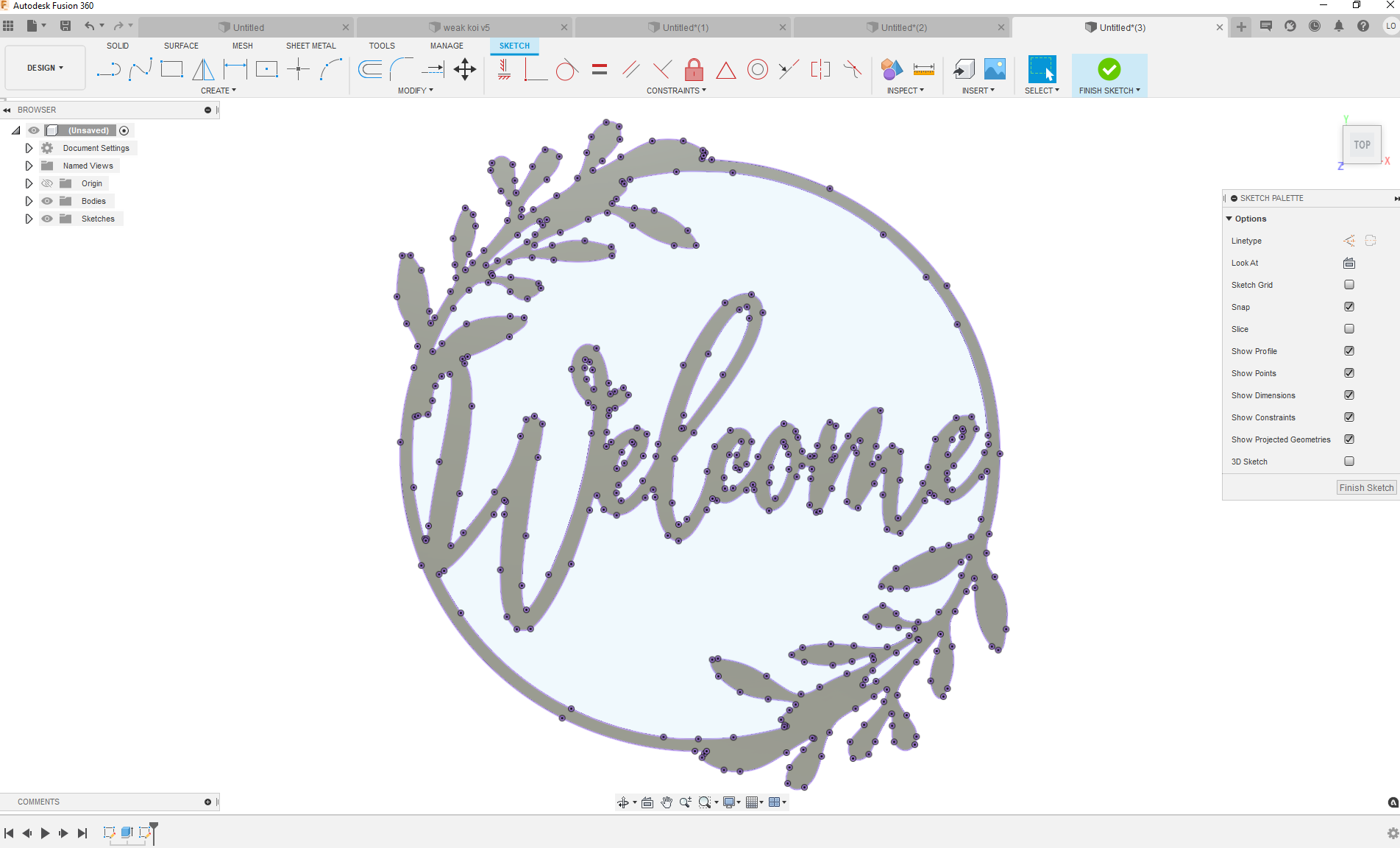

I am pretty new, need help with a file

I have a sign design in fusion and it sticks in the tool generate process. Can someone help me find the issue?
it stalls at 45.5%

round-welcome-sign.dxf (124.7 KB)

What size is that supposed to be? I imported it into Sheetcam and even with metric scaling, its about 55" in diameter. If i import it as inches, its 25x that size.

2 Likes

@ds690 is right…check your scale size of the drawing…you may be bogging down fusion…
I loded into shettcam and it processed in 2 seconds…but it is huge!!!

1 Like

WELCOME SIGN DIRTY 2

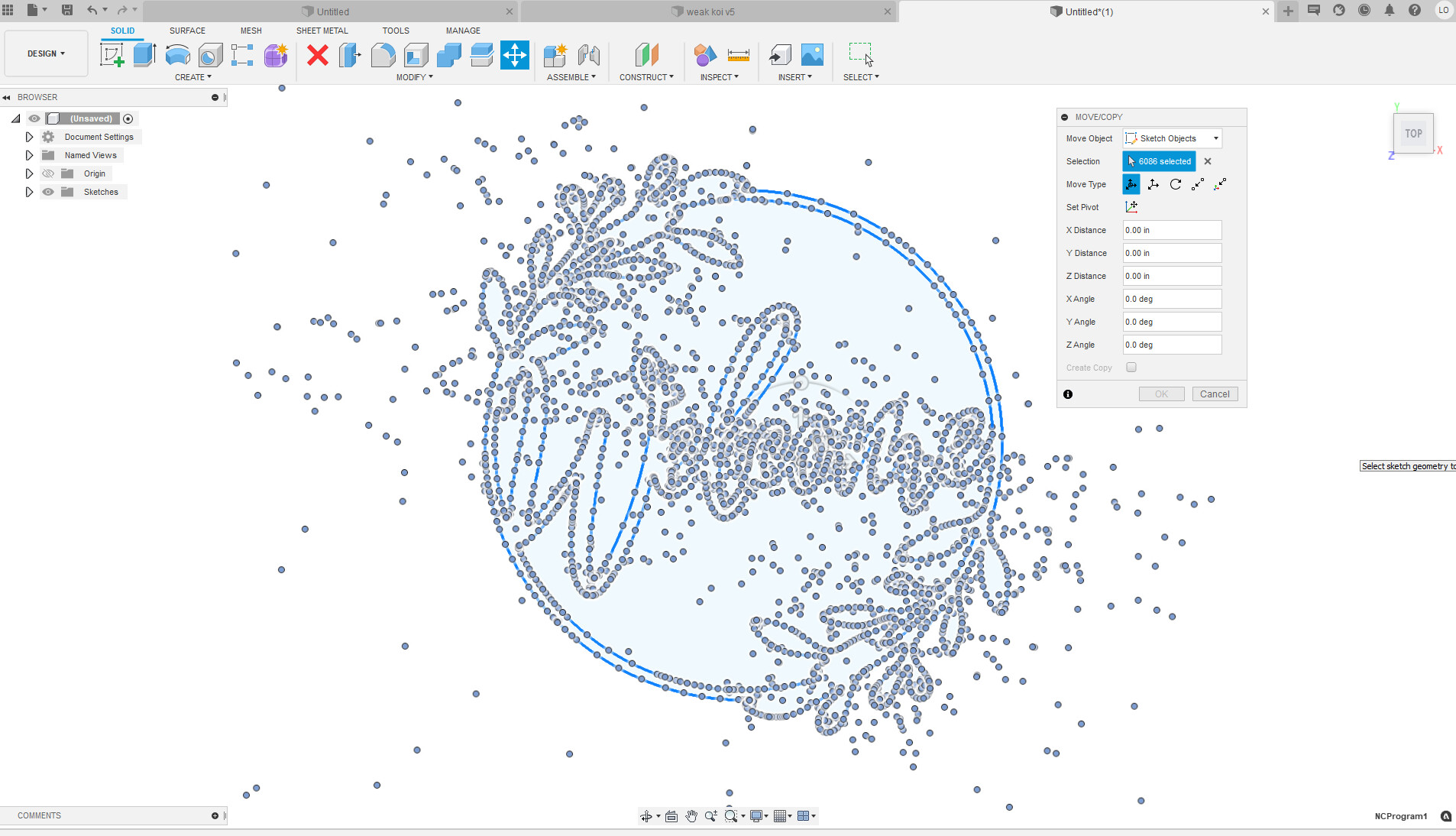

Therre is alot of dirty path to svg conversion happening here.
This will bog fusion 360 down, it want to track it all the points and sheetcam will ignore many.

2 Likes

round-welcome-sign-crispy-16in.dxf (178.1 KB)



WELCOME SIGN CRISPY 2

welcome-wreath

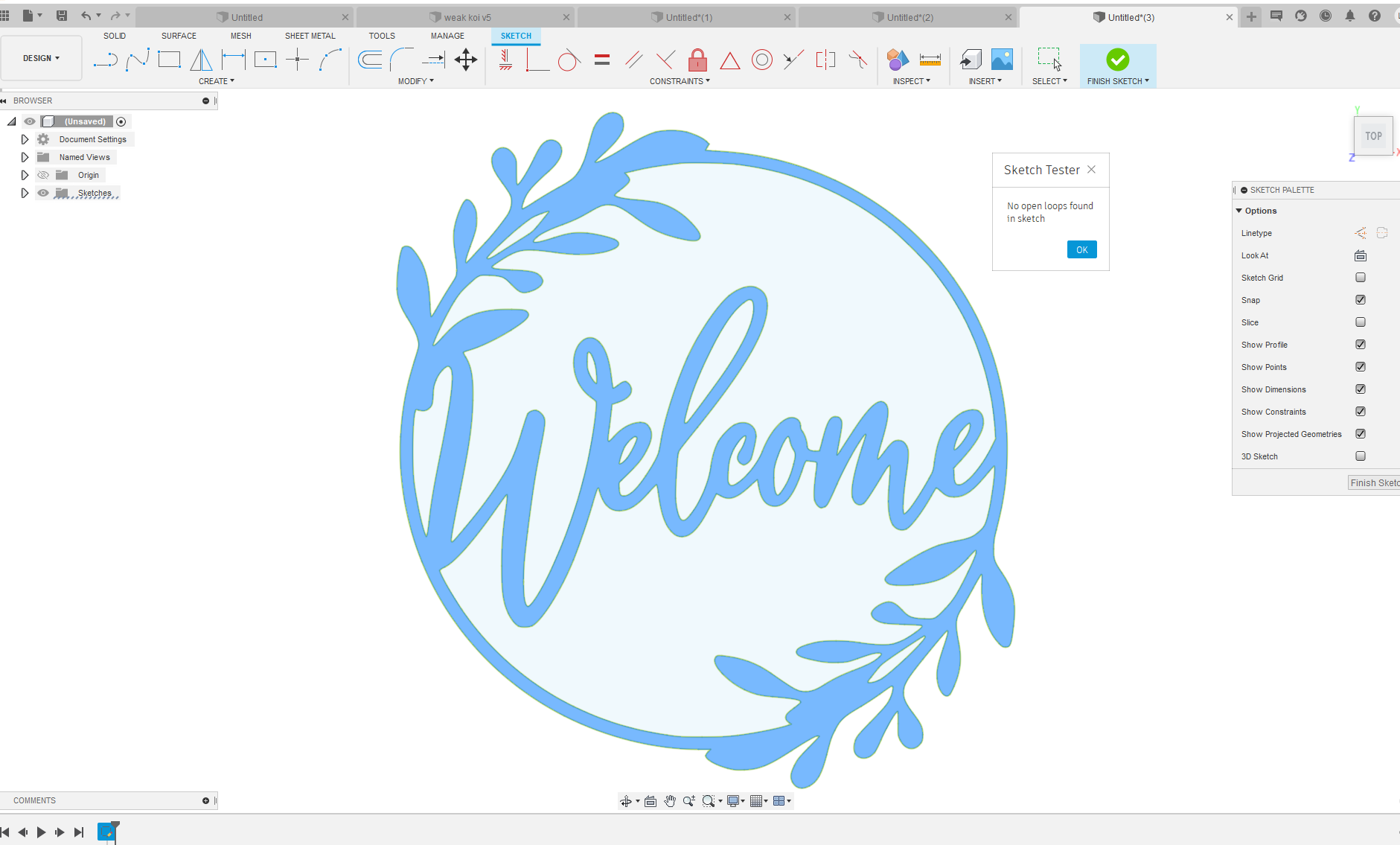

Here is a clean crispy file both in DXF and SVG.

I made it a 16 in diameter.

I also wasn’t sure of the scaling I though it might be 12 inches across but ?
in mm I was getting the same

but was thinking it may be pixels at 125ppi

How did you get the orignial file? how was it converted ?

4 Likes

WELCOME SIGN DIRTY 2
WELCOME SIGN CRISPY 5

Easier file to handle

3 Likes

well done @TinWhisperer …you are certainly upping the game here…your support is outstanding!!!

5 Likes

thanks so much. I have been away and didnt get a chance to check. I see lots of good advice here.

1 Like
